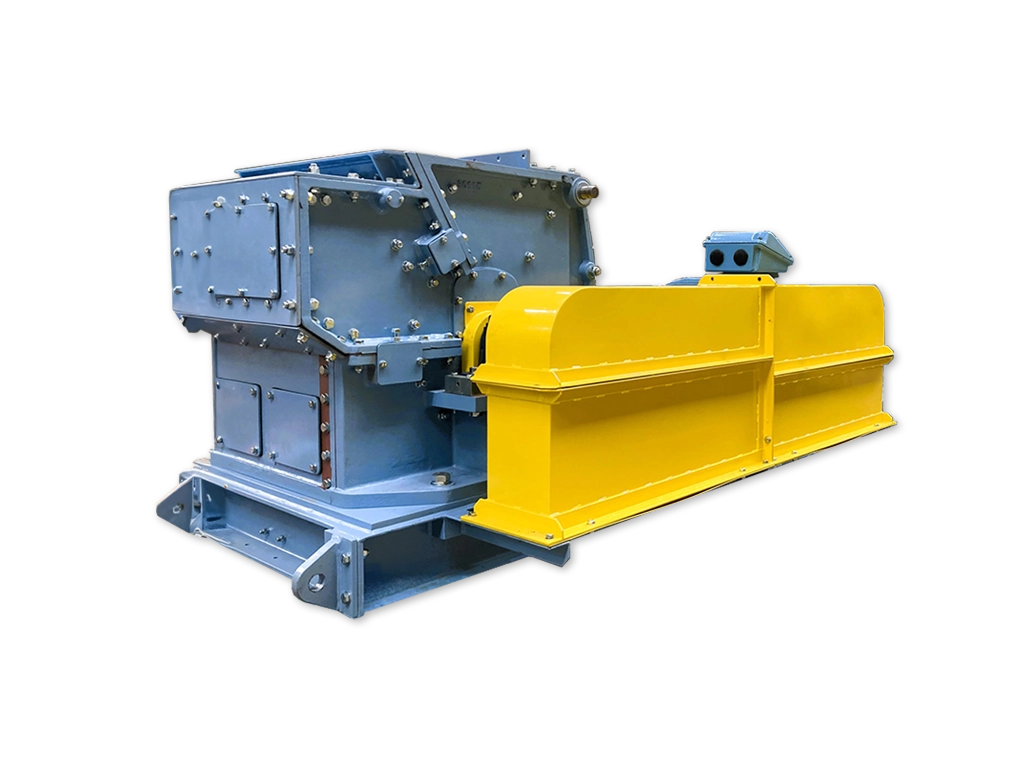

Hammermill Crusher
BJD Hammermills have built a reputation for being reliable, efficient machines in a wide variety of industrial applications. The Hammermill is suitable for the reduction of friable and fibrous materials to a variety of products.
Moist materials can be handled; the permissible moisture content is dictated by the class of material and product required.
Benefits
- High reduction ratios
- Capacities up to 500 T/Hr depending on duty
- Adjustable breaker plate
- Handles moist materials
Typical Applications
- Grog, clay, shale and broken bricks
- Secondary Crushers for limestone
- Barytes, bauxite, borax, nitrates, salt, kaolin, Pharmaceuticals and many other chemicals, plastics etc
- Coal preparation plants, coke ovens and shale for stone dusting
- Phosphates, muriate of potash, guano, etc (‘P-Type’ Hammermill designed for chemical fertilizer application)
- Knock-out sand
- Cullet
- Raw or calcined gypsum for plasterboard etc.
- Burnt lime, shells, chalk etc
- Aggregates, agricultural limestone and brick dust
- Bismuth, copper, iron and many other ores
- Preparation of limestone etc., for sintering
- Final reduction for pellet production of direct firing
- Timber off-cuts, chipboard, etc., for boiler firing
View Brochure
Specification
Approx Weight (kg)
508
Approx RPM
3000
Power (kW)
7.5
Max Feedsize (mm)
38 - 50
Capacity (T/hr)
Duty A = 1.5
Duty B = 5
Dimensions (m)
A = 210
B = 229
C = 406
D = 673
E = 635
F = 210
G = 483
Approx Weight (kg)
1180
Approx RPM
2800
Power (kW)
15
Max Feedsize (mm)
50 - 75
Capacity (T/hr)
Duty A = 2.5
Duty B = 12
Dimensions (m)
A = 330
B = 305
C = 610
D = 1118
E = 813
F = 305
G = 686
Approx Weight (kg)
1814
Approx RPM
2200
Power (kW)
45
Max Feedsize (mm)
75 - 100
Capacity (T/hr)
Duty A = 6
Duty B = 40
Dimensions (mm)
A = 533
B = 533
C = 813
D = 1346
E = 978
F = 356
G = 940
Approx Weight (kg)
2540
Approx RPM
2200
Power (kW)
70
Max Feedsize (mm)
75 - 100
Capacity (T/hr)
Duty A = 9
Duty B = 60
Dimensions (mm)
A = 737
B = 724
C = 908
D = -
E = 978
F = 333
G = 940
Approx Weight (kg)
5300
Approx RPM
1800
Power (kW)
95
Max Feedsize (mm)
100 - 150
Capacity (T/hr)
Duty A = 9
Duty B = 80
Dimensions (mm)
A = 806
B = 832
C = 1029
D = 1830
E = 1194
F = 508
G = 1016
Approx Weight (kg)
6710
Approx RPM
1500
Power (kW)
120
Max Feedsize (mm)
100 - 150
Capacity (T/hr)
Duty A = 18
Duty B = 90
Dimensions (mm)
A = 914
B = 940
C = 1245
D = 1854
E = 1384
F = 457
G = 1270
Approx Weight (kg)
8390
Approx RPM
1500
Power (kW)
160
Max Feedsize (mm)
100 - 150
Capacity (T/hr)
Duty A = 24
Duty B = 120
Dimensions (mm)
A = 1219
B = 1245
C = 1397
D = 1854
E = 1384
F = 457
G = 1270
Approx Weight (kg)
9750
Approx RPM
1500
Power (kW)
195
Max Feedsize (mm)
100 - 150
Capacity (T/hr)
Duty A = 30
Duty B = 150
Dimensions (mm)
A = 1524
B = 1550
C = 1549
D = 1854
E = 1384
F = 457
G = 1270
Approx Weight (kg)
10960
Approx RPM
1000
Power (kW)
150
Max Feedsize (mm)
150 - 250
Capacity (T/hr)
Duty A = 21
Duty B = 135
Dimensions (mm)
A = 940
B = 965
C = 1473
D = 2106
E = 1702
F = 533
G = 1372
Approx Weight (kg)
13340
Approx RPM
1000
Power (kW)
200
Max Feedsize (mm)
150 - 250
Capacity (T/hr)
Duty A = 28
Duty B = 185
Dimensions (mm)
A = 1245
B = 1270
C = 1600
D = 2184
E = 1702
F = 533
G = 1372
Approx Weight (kg)
16290
Approx RPM
1000
Power (kW)
275
Max Feedsize (mm)
150 - 250
Capacity (T/hr)
Duty A = 38
Duty B = 255
Dimensions (mm)
A = 1702
B = 1727
C = 1961
D = 2184
E = 1702
F = 610
G = 1372
Approx Weight (kg)
16520
Approx RPM
1000
Power (kW)
300
Max Feedsize (mm)
150 - 250
Capacity (T/hr)
Duty A = 42
Duty B = 275
Dimensions (mm)
A = 1854
B = 1880
C = 2057
D = 2184
E = 1702
F = 610
G = 1372
Approx Weight (kg)
17240
Approx RPM
1000
Power (kW)
225
Max Feedsize (mm)
150 - 250
Capacity (T/hr)
Duty A = 27
Duty B = 210
Dimensions (mm)
A = 927
B = 965
C = 1660
D = -
E = 2032
F = 686
G = 1626
Approx Weight (kg)
19280
Approx RPM
1000
Power (kW)
300
Max Feedsize (mm)
150 - 250
Capacity (T/hr)
Duty A = 36
Duty B = 275
Dimensions (mm)
A = 1245
B = 1245
C = 1812
D = -
E = 2032
F = 686
G = 1626
Approx Weight (kg)
21910
Approx RPM
1000
Power (kW)
410
Max Feedsize (mm)
150 - 250
Capacity (T/hr)
Duty A = 50
Duty B = 380
Dimensions (mm)
A = 1689
B = 1727
C = 2042
D = -
E = 2032
F = 686
G = 1626
Approx Weight (kg)
22410
Approx RPM
1000
Power (kW)
450
Max Feedsize (mm)
150 - 250
Capacity (T/hr)
Duty A = 54
Duty B = 410
Dimensions (mm)
A = 1994
B = 2032
C = 2194
D = -
E = 2032
F = 686
G = 1626
